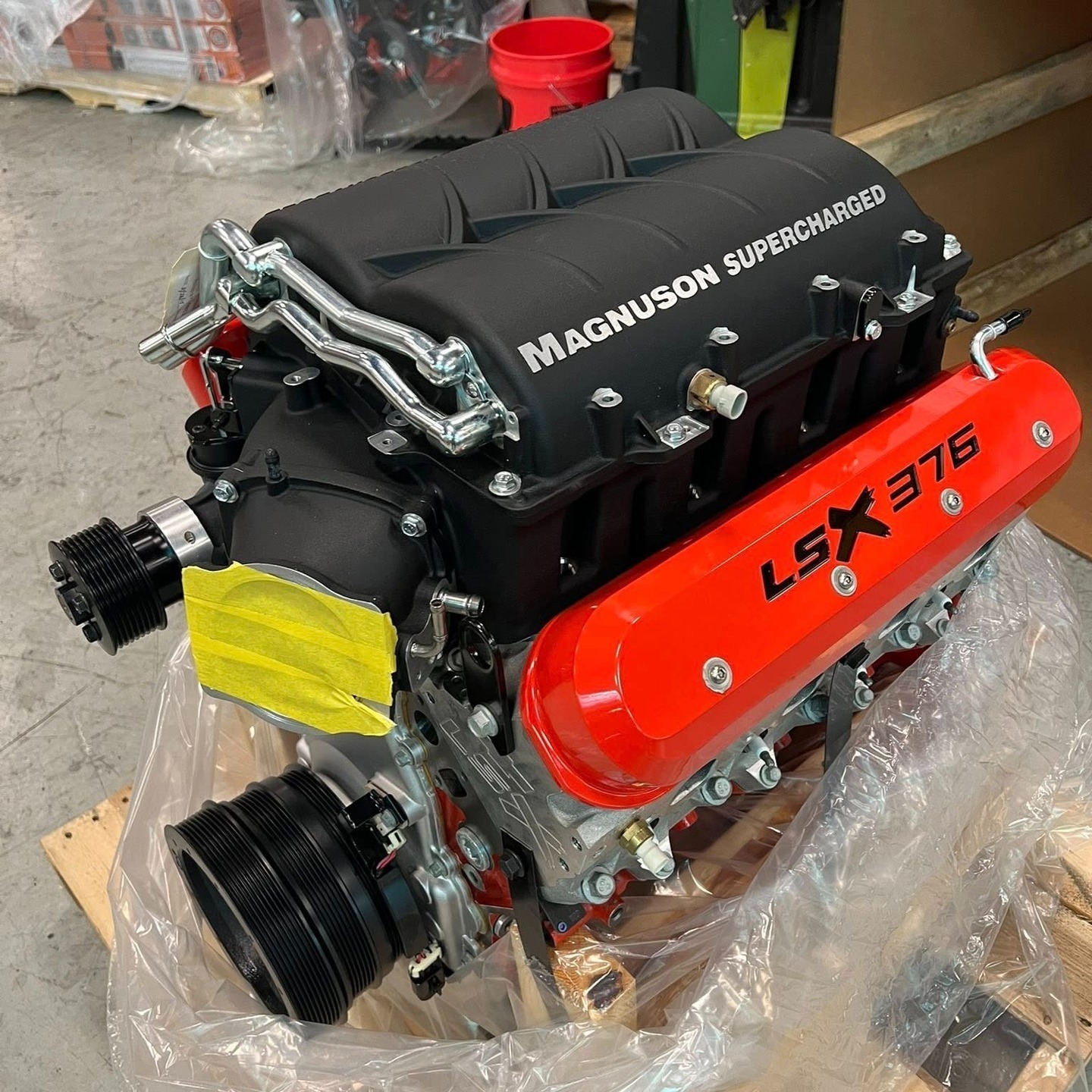

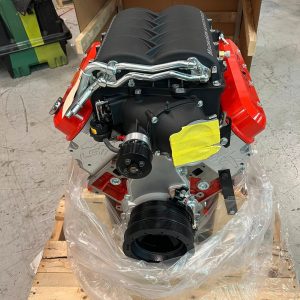

LSX376-B15 Crate Engine & Magnuson Supercharger Package

LSX engine performance meets purpose-built forced induction in this Chevrolet Performance LSX376-B15 crate engine and Magnuson Heartbeat TVS2300 supercharger package. Designed for high-performance custom builds, this combination pairs the 6.2L LSX platform with a matched supercharger system for builders looking to create a serious boosted LS powertrain.

At the center of the package is the LSX376-B15 crate engine, built around a cast-iron LSX Bowtie block with 6-bolt cross-bolted main caps. The engine features a forged steel crankshaft, forged 4340 H-beam connecting rods, and forged aluminum pistons with a 9.0:1 compression ratio. This combination provides a strong foundation for forced-induction applications while retaining the familiar Gen IV LS architecture.

The 376-cubic-inch engine displaces 6.2 liters, making it a natural choice for buyers searching for a 6.2 LS crate engine or high-performance LSX powerplant. High-flow aluminum LS3-style rectangular-port cylinder heads complement the LSX short-block configuration.

Magnuson Heartbeat TVS2300 Supercharger

The Magnuson Heartbeat TVS2300 supercharger is matched to the LSX376-B15 for a complete forced-induction setup. Its twin four-lobe rotor design and integrated intercooling system are engineered to provide responsive boost and manage intake temperatures in a compact package.

The supercharger assembly includes high-flow fuel rails, matched fuel injectors, and an electronic throttle body, helping simplify the process of building a complete boosted LS engine combination.

LSX376-B15 Engine Specifications

• Engine: Gen IV LSX Small-Block V8
• Displacement: 376 cubic inches / 6.2 liters
• Block: Cast-Iron LSX Bowtie with 6-Bolt Main Caps
• Compression Ratio: 9.0:1
• Supercharger: Magnuson Heartbeat TVS2300
• Rotating Assembly: Forged Steel Crankshaft, Forged 4340 H-Beam Rods, Forged Aluminum Pistons
• Cylinder Heads: High-Flow Aluminum LS3-Style Rectangular Port Heads

Package Includes

• Assembled Chevrolet Performance LSX376-B15 Long Block Engine
• Magnuson Heartbeat TVS2300 Supercharger with Integrated Intercooler
• High-Flow Fuel Rails and Matched Fuel Injectors
• Electronic Throttle Body Assembly
• Ignition Coil Packs, Brackets, and Spark Plug Wires
• Front Accessory Drive (FEAD), Water Pump, and Harmonic Balancer
• Oil Pan and Timing Cover Assembly

For buyers looking for an LSX engine for sale, this package combines the LSX376-B15 crate engine with a Magnuson supercharger in one performance-oriented configuration. It is suited to custom muscle car, truck, restomod, and other LS-powered builds where a 6.2L LSX engine and forced-induction system are required.

Verify accessory configuration, fuel-system requirements, engine management, vehicle fitment, and any additional components required for your specific installation before ordering.
